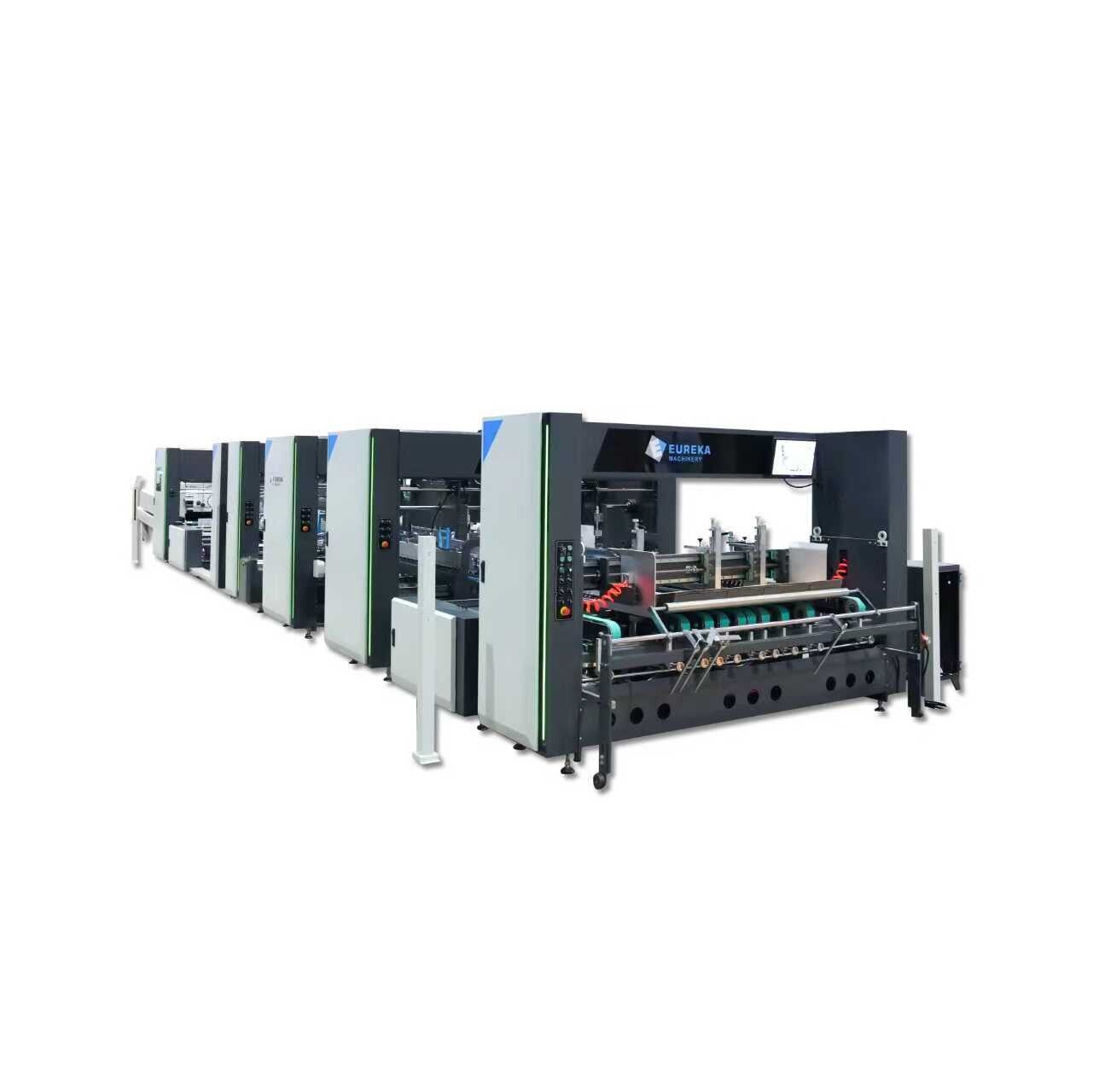

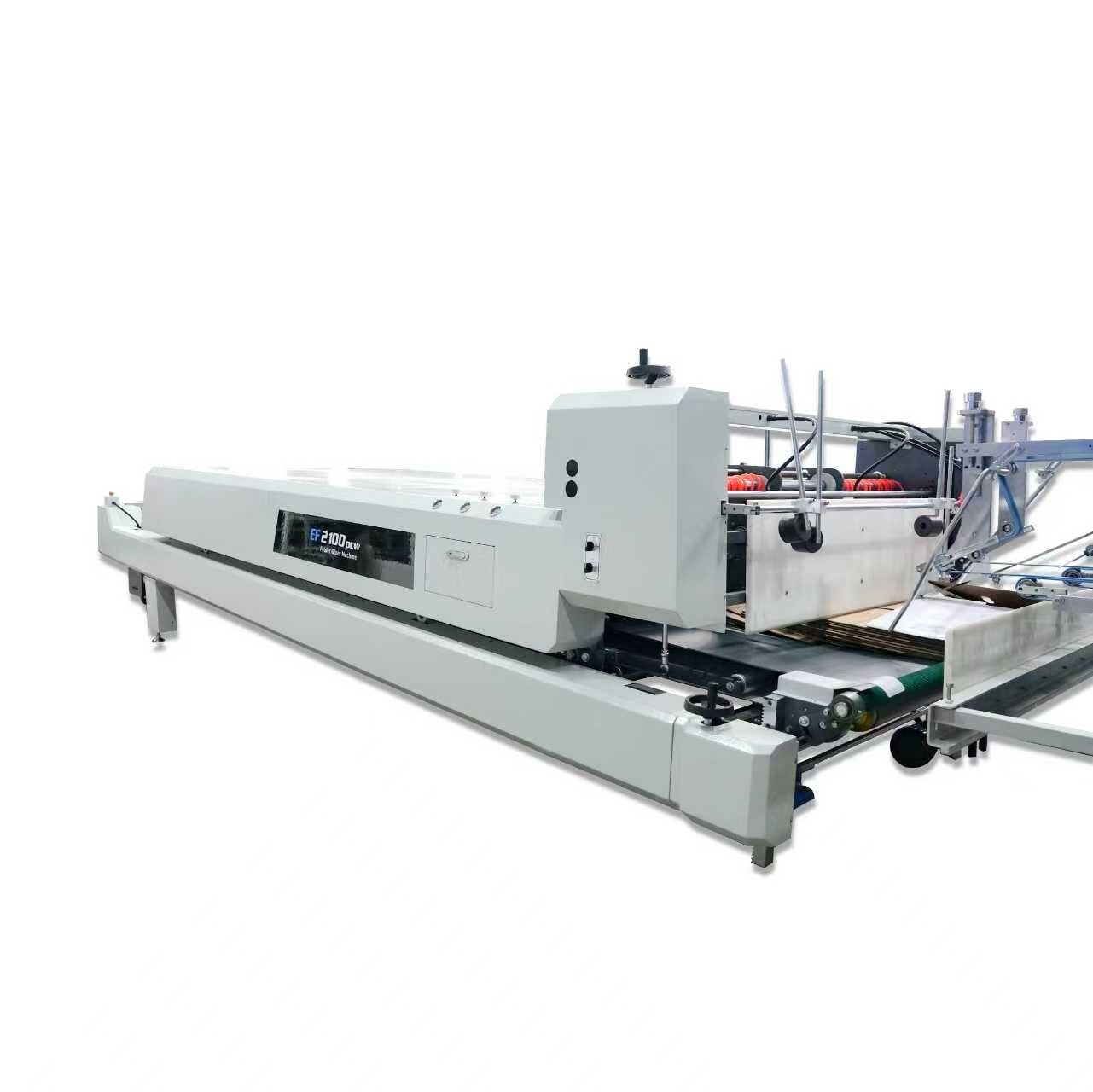

Folder gluer EF 1200-3200 for corrugated

The EF series folder gluer machines are versatile and primarily designed for medium-sized cardboard packages weighing between 300g and 800g. They can handle corrugated cardboard with thicknesses ranging from 1mm to 10mm and utilize various facers, including E, C, B, A, AB, and EB. These machines are capable of producing two or four folds, crash-locking the bottom, creating four or six-corner boxes, and printing on slotted cartons.

The EF series machines feature a modular structure that separates the driving and functional modules, enabling powerful output and user-friendly operation through a graphical Human-Machine Interface (HMI), Programmable Logic Controller (PLC) control, online diagnostics, and a multi-function remote controller. The independent motor driving system ensures smooth and quiet operation. Additionally, the carrier upper belts are maintained under stable and easy pressure control through independent pneumatic devices.

Equipped with high-performance servo motors for precise sectioning, the EF series machines meet the demands of highly stable and efficient production. These machines are manufactured in accordance with European CE standards.
