Laminator machines Tauler
Explore our diverse range of Tauler sheeters, from compact models suitable for small production runs to robust industrial equipment designed to meet the most demanding requirements. Discover the exceptional quality, versatility, and efficiency that define our sheeters, and find the ideal solution for your laminating needs. Embark on a journey into the world of lamination with Tauler and elevate the quality of your projects to new heights.

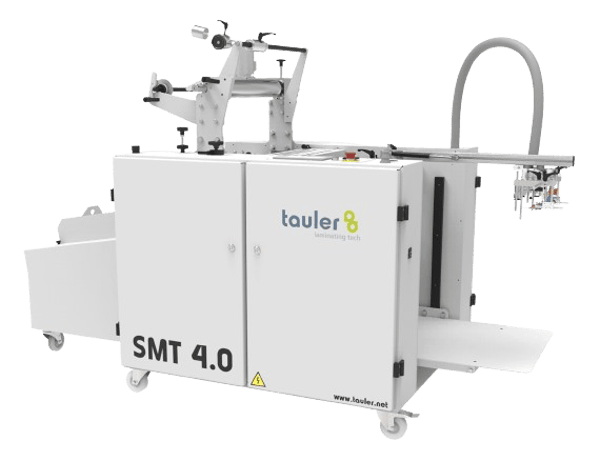

Here are some key reasons why you should choose a TAULER SMT4.0:
- Improved Lamination and Energy Efficiency: The TAULER_OIL system in the SMT4.0 enhances lamination, leading to reduced energy consumption.
- Convenient Coil Adjustment: The SMT4.0 features a quick coil adjustment feature that allows you to make adjustments while the machine is running.
- Easy Film Change: The TAULER_SHAFT SYSTEM simplifies the process of changing films, making it more efficient.
- Versatile Toner Printing: The SMT4.0 enables you to stamp toner prints, providing a wide range of printing capabilities.
- Intuitive Touchscreen: The SMT4.0 boasts an intuitive touchscreen interface, making it user-friendly and easy to operate.
- Error Correction: The SMT4.0 includes a REVERSE MODE that helps you correct potential errors during printing.
- Automatic Starting System: The TAULER_GO ON system ensures automatic starting, eliminating the need for manual intervention.
Technical specifications Tauler SMT 4.0
Technical specifications
Maximum format 550 x 790 mm
Minimum format 300 x 250 mm
Maximum mechanical speed 2 – 25 m/min*
Paper thickness 130 a 400 g/m2
input/Output stack height 600 mm
Film thickness 20 to 42 μm
Electrical power installed 8 kW
Power supply 400 V three-phase 50 Hz
Security CE-compliant protections, emergency stops, and safety sensors.
